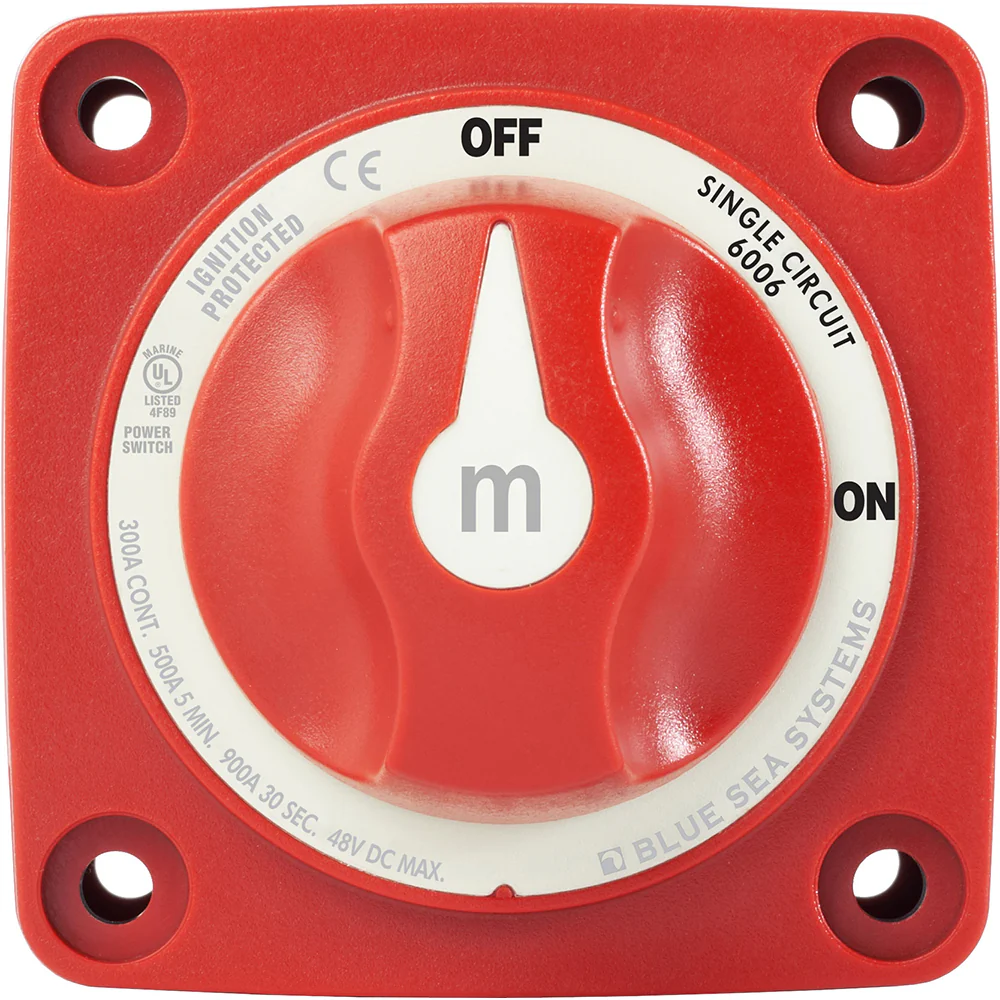

Blue Sea 6006 m-Series (Mini) Battery Switch Single Circuit ON/OFF Red [6006]

6006
m-Series (Mini) Battery Switch

Single Circuit ON/OFF

• Switches a single battery to a single load group

• Multiple switches can be used to manage several isolated circuits including cross conntecting for emergency paralleling

• Ignition protected - Safe for installation aboard gasoline powered boats

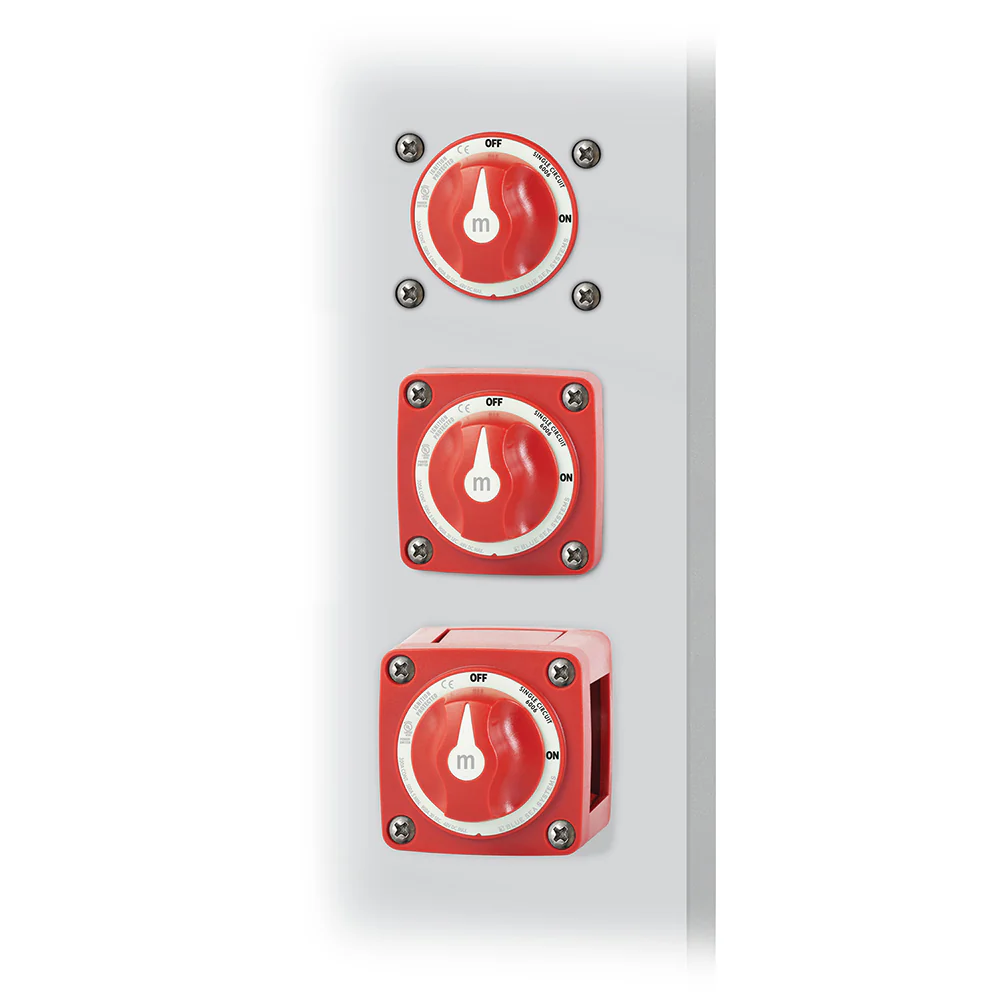

• Case design allows surface, front panel, or rear panel mounting

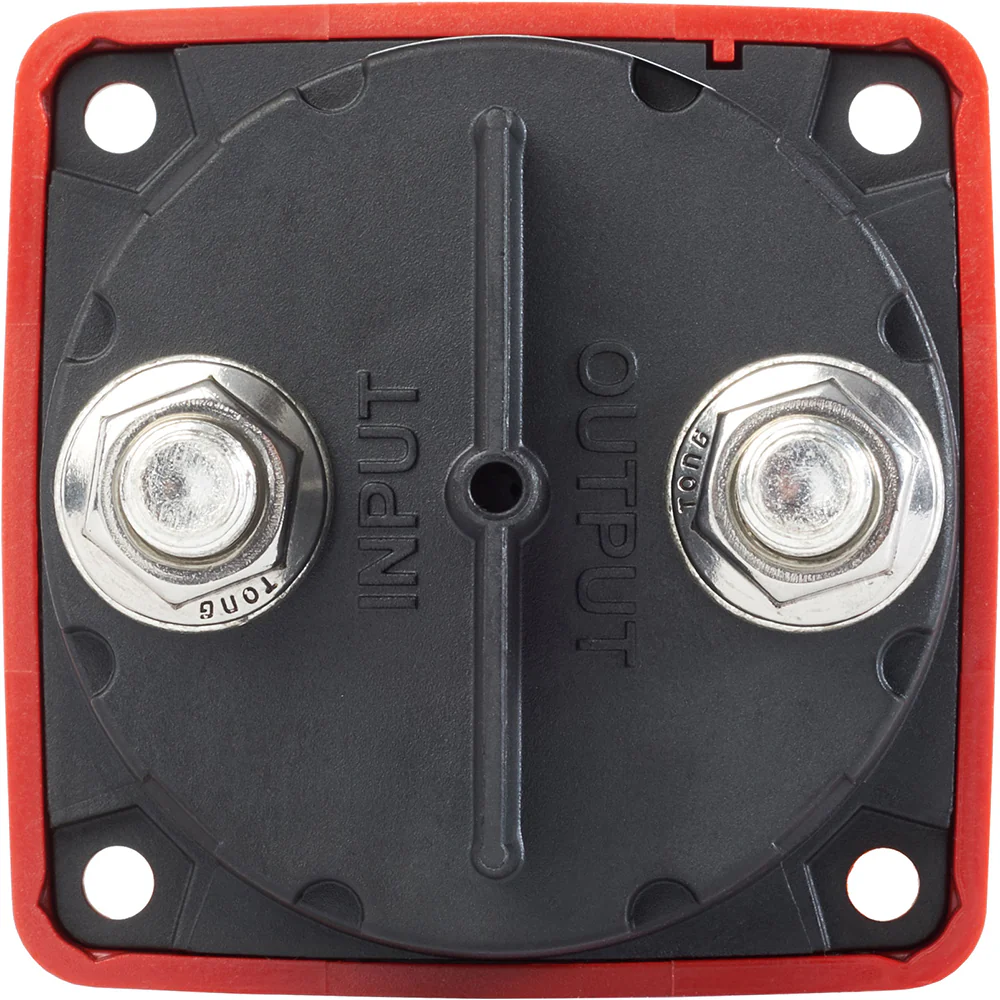

• Isolating cover with snap-on sections protects rear contacts

• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals

• 7/8" (22.22mm) stud length to accept multiple cable terminals

• Ideal for marine or RV applications

• All non-corrosive marine grade metals

• Molded in durable reinforced polycarbonate

• Tactile textures indicate knob position by feel only

• Label with international ON/OFF legends

• Removable key or knob remains positively retained

• ICON label set included for circuit identification

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Positions: 1
• Lockable: Yes
• Continuous Amperage: 700a
• Box Dimensions: 2"H x 4"W x 7"L WT: 0.65 lbs
• UPC: 632085060060

Owner's Manual (pdf)
